Solar Pump Inverter

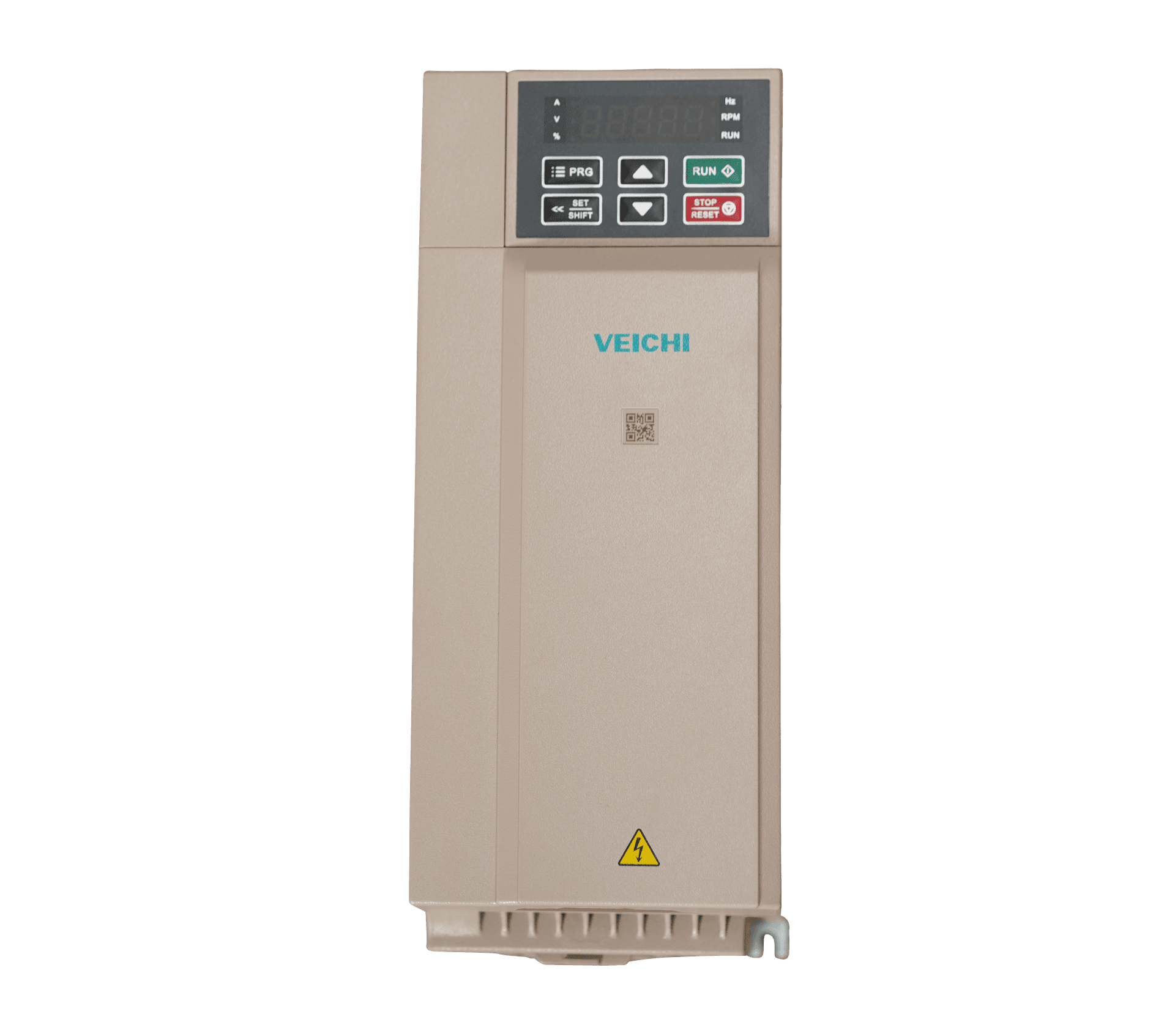

The VEICHI SI23-D5 series is a high-performance Solar Pump Inverter designed to efficiently drive water pumps directly from solar energy. It intelligently converts DC power from solar panels into usable AC power for motors, ensuring smooth and reliable operation even under varying sunlight conditions.

Technical Data

Installation MethodHitch mounting

Protection ClassIP20

Operating Temperature-10°C to 60°C

Cooling MethodForced Air Cooling

Humidity Tolerance20%–95% RH (non-condensing)

PV Input Voltage Range250 - 780V

Recommended PV Voc voltage620 - 750V

Maximum MPPT efficiencyUp to 99.8%

AC Input Voltage Range3PH 380–480V

AC Input Frequency50/60Hz

Output Voltage Range230 - 460V

Output Frequency Range0 - 600Hz

Output Power Range0.75 - 30kW

Rated Output Current10A / 17A / 32A / 60A
