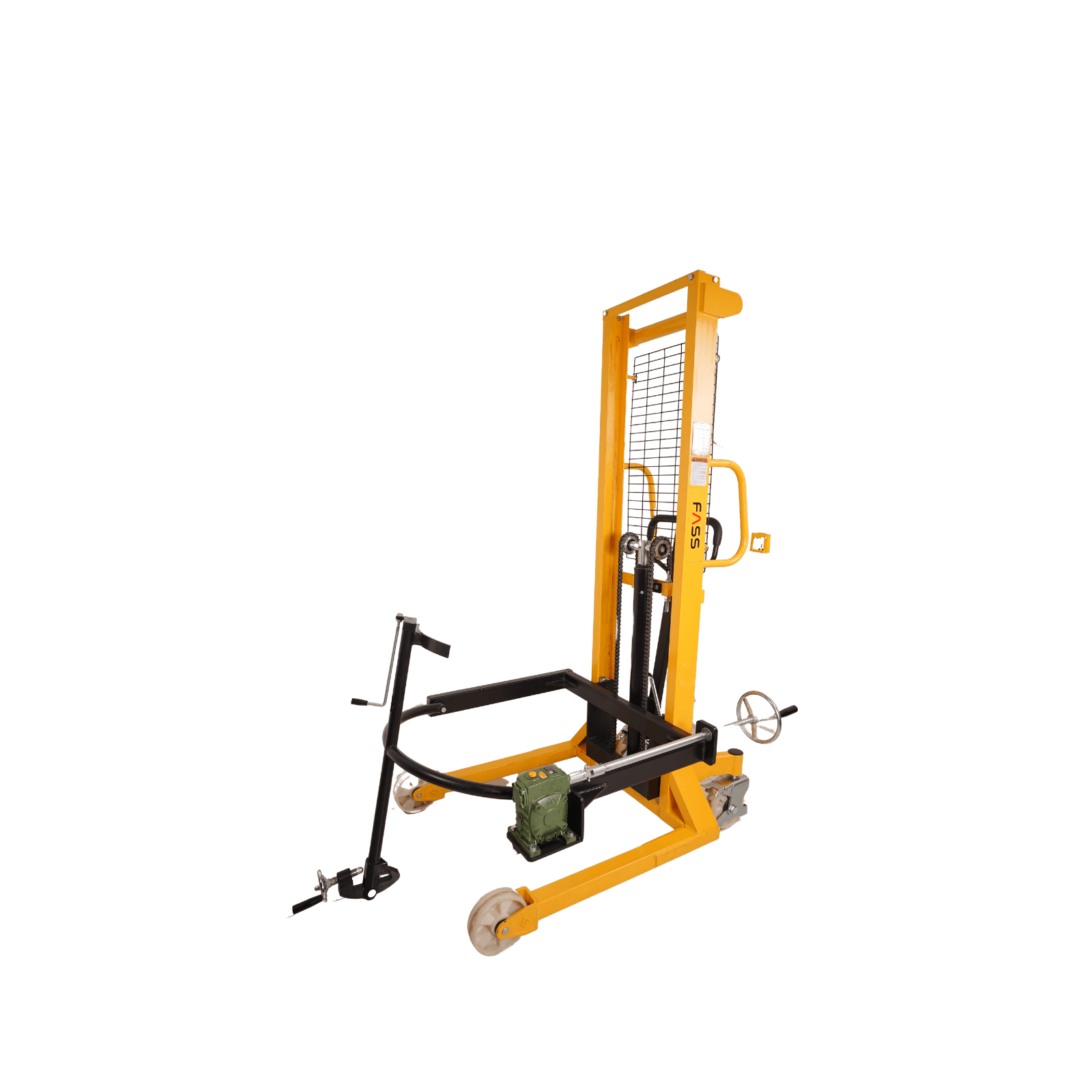

Oil Drum Hydraulic Stacker

The Fass Drum Lifter SYG-Y is a manual drum handling device designed for efficient lifting, tilting, and transporting of standard oil drums in industrial settings.

Read More

Technical Data

Capacity400Kg
Parking ModePedal
Operational ModeWalk
Promotion modeManual / Pedal
Flip Angle180°
Material ScienceNylon
QTY of steering/bearing wheels2/2
Wheelbase1060 mm
Bearing wheel sizeØ180×50 mm
Steering wheel dimensionsØ180×50 mm
Vertical elevation of oil drum1450 mm
Height of oil drum1350 mm
135° inclined height of oil barrel1250 mm
Overall length1200 mm
Overall width960 mm
Overall height2030 mm
Min. turning radius1250 mm
Net weight210 kg

Features

● Lightweight and compact design for easy handling.

● Manual and pedal lift options for flexible operation.

● 180° drum flipping and dumping functionality.

● Firm engagement system for secure oil drum handling.

● High vertical lift (up to 1450 mm) for elevated transfers.

● Heavy-duty capacity of 400 kg with strong nylon wheels.
